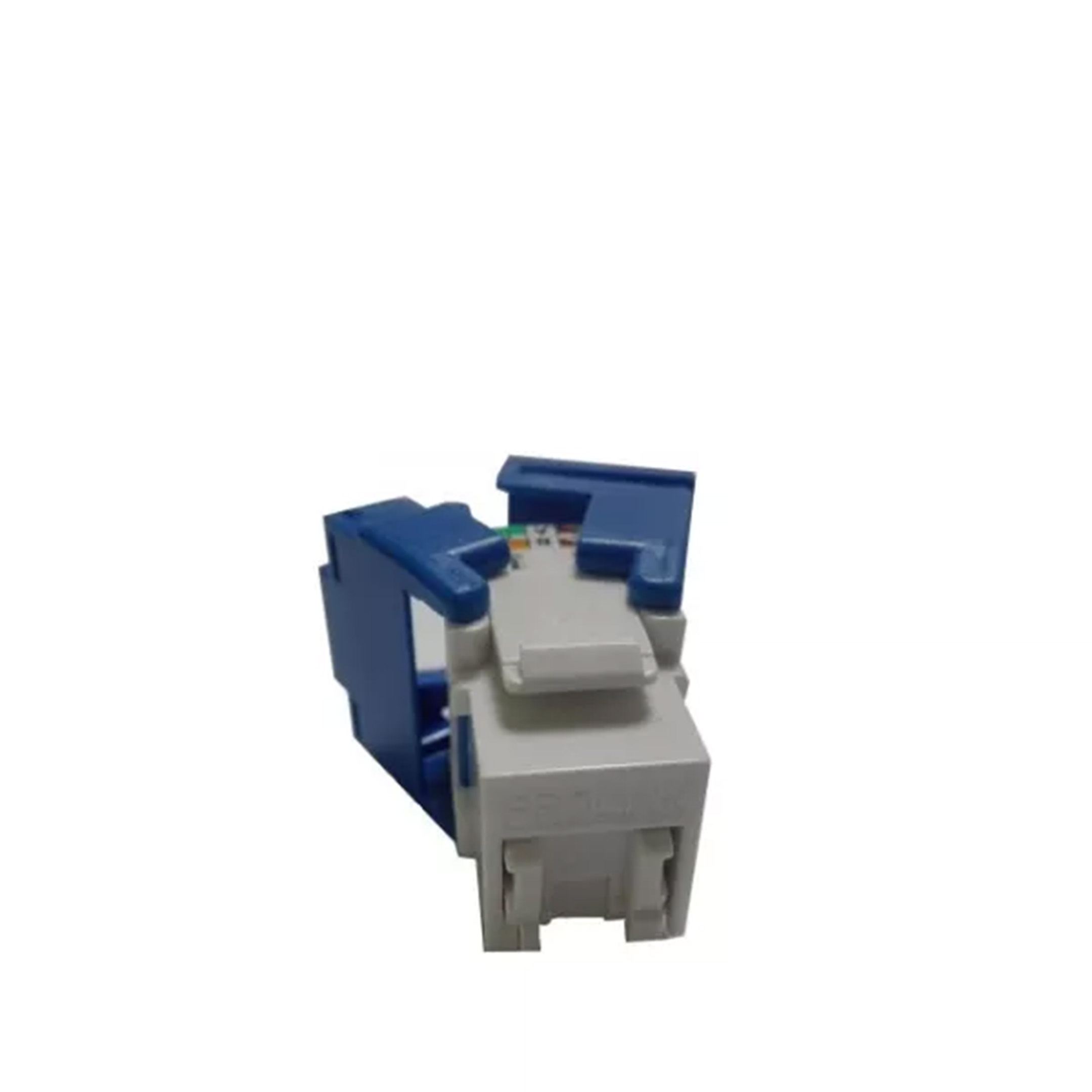

ProLink PL-KJ6A-TL — Prolink MINI TYPE Cat6A UTP Toolless KEYSTONE JACK
142,00 EGP
Prolink MINI TYPE Cat6A UTP Toolless KEYSTONE JACK
Description
Description
ProLink CAT6A UTP 10G keystone jack Mini Type, Tool-less Connection Module
Technical Specifications
| Specification | Value |
|---|---|
| Description | ProLink CAT6A UTP 10G keystone jack Mini Type, Tool-less Connection Module |
| Number of RJ45 jacks | 1 |
| Number of signal contacts | 8/jack |
| Operating temperature range | -10°C to 60°C |
| Storage temperature range | -40°C to 70°C |
| Humidity | 95% (non-condensing) |
| Contact material | CuSn |
| Contact area plating | 1.2 µm gold over nickel |
| IDC* plating | Tin-plated |
| Cutting blade material | Stainless steel |
| Housing material | Polycarbonate (UL-94-V0) |
| Admissible wire Ø | 0.4 mm (AWG26) – 0.65 mm (AWG22) |
| Admissible strand Ø | AWG26/7 – AWG22/7 |
| Admissible insulation Ø | 0.8 mm – 1.6 mm |
| Cable diameter | 10 mm maximum |
| Cable strain relief | Through cable tie |
| Description | Standard value | Relevant Standard | Typical value (at 20°C) |
| Mating cycles min. | > 750 | ISO/IEC 11801 2nd Ed. | > 1000 |
| Re-terminations** | > 20 | ISO/IEC 11801 2nd Ed. > | > 20 |
| Description | Standard value | Relevant Standard | Typical value (at20°C) |
| Contacts | 1000 V DC or AC peak | IEC 60603-7-41 | > 1000 Veu |
| Insulation resistance | > 250 M (100 V DC) | IEC 60603-7-41 | > 5 MK (100 V DC) |
| Contact resistance | < 200 m | IEC 60603-7-41 | <5 mK |
| I/O resistance | < 200 m | IEC 60603-7-41 | 60 mK |
| I/O resistance unbalance | < 50 m | IEC 60603-7-41 | 30 mK |
| Current carrying capacity | 1 Amp @ 60°C | IEC 60603-7-41 | Pass |
| NEXT (20°C) [dB] all | |
| Frequency | Insertion Loss | Return Loss | TCL (20°C) |
| (MHz) | (20°C) | (20°C) [dB] | pair combinations | [dB] |
| 1 | > -0.05 | -48.3 | -97.3 | -84.4 |
| 10 | > -0.05 | -46.1 | -80.0 | -66.1 |
| 31 | > -0.05 | -42.6 | -69.5 | -56.6 |
| 100 | > -0.05 | -32.6 | -59.5 | -47.3 |
| 175 | > -0.05 | -27.2 | -54.1 | -42.7 |
| 250 | -0.08 | -23.6 | -49.8 | -40.1 |
| 400 | -0.23 | -19.7 | -41.6 | -35.6 |
| 500 | -0.42 | -17.6 | -37.3 | -33.5 |
Standards / Compliance
- Description: Standard value | Relevant Standard | Typical value (at 20°C)
- Description: Standard value | Relevant Standard | Typical value (at20°C)
