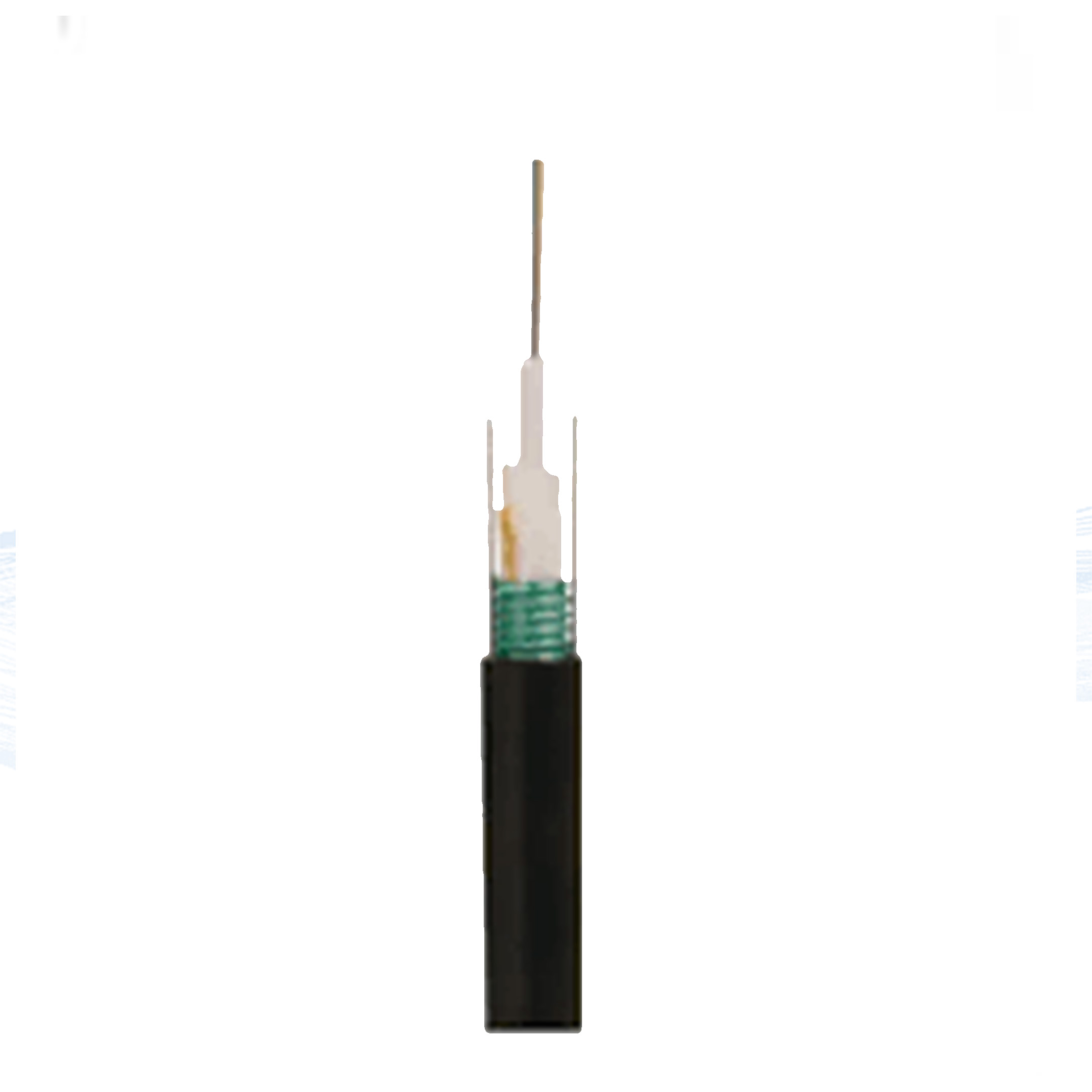

ProLink PL-FOC24D-OS2 — Prolink Double Armor Central Loose Tube Fiber Cable 24 Core OS2 9/125 OD:12.5MM Steel Wire
130,00 EGP
Prolink Double Armor Central Loose Tube Fiber Cable 24 Core OS2 9/125 OD:12.5MM Steel Wire
Description
ProLink Double ARMOR Central Loose Tube Cable 24-CORE Single Mode , LSZH, OS2 , 9/125 PER METER OD:10MM Items Unit Specifications 9/125
Technical Specifications
| Specification | Value |
|---|---|
| PROLINK SM Fiber System 9/125 – LSZH – OS2 PL-FOC24D-OS2 | |
| ProLink Double ARMOR Central Loose Tube Cable 24-CORE Single Mode , LSZH, OS2 , 9/125 PER METER | |
| Discerption | |
| OD:10MM | |
| Items | Unit | Specifications 9/125 |
| Cladding Diameter | μm | 124.8±0.7 |
| Core Non-Circularity | % | ≤0.7 |
| Core-Cladding Concentricity Error | μm | ≤0.5 |
| Coating Diameter | μm | 245±5 |
| Coating Non-Circularity | % | ≤6.0 |
| Cladding-Coating Concentricity Error | μm | ≤12.0 |
| Cable Cutoff Wavelength | nm | ʎcc≤1260 |
| 1310nm | μm | 9.2±0.4 |
| Mode Field Diameter | |
| 1550nm | μm | 10.4±0.5 |
| 1310nm | dB/km | ≤0.36 |
| Attenuation (max.) | |
| 1550nm | dB/km | ≤0.22 |
| Fiber Count | Specifications |
| Fiber Mode | Single Mode |
| Fiber Type | OS2 |
| Fiber Count | 24 |
| Dimension | 250μm±15μm |
| Colored Coating Fiber | Blue, orange, green, brown, gray, natural color, |
| Color | |
| Red, black, yellow, purple, pink, aqua blue | |
| Dimension | 2.0mm±0.5mm |
| Material | PBT |
| Tube color | Blue, orange, green, brown |
| Loose Tube | |
| Loose tube number | 2 |
| Filling rope number | 1 |
| Fiber in loose tube number | 12 |
| Material of reinforcement | Phosphating steel wire 1.0mm |
| Dimension | Inner1.6mm±0.10mm/Outer1.7mm±0.10mm |
| Material | HDPE |
| Outer / Inner Jacket | Sheath color | Black |
| Line color | Yellow |
| Flame retardant | |
| Sheath outer diameter: | 12.5mm±0.2mm |
| Items | Unit | Specifications |
| Environmental Space | Low Smoke Zero Halogen (LSZH) |
| Tension (Long Term） | N | 600 |
| Tension (Short Term） | N | 1500 |
| Crush (Long Term） | N/100mm | 300 |
| Crush (Short Term） | N/100mm | 1000 |
| Min. Bend Radius (Dynamic） | mm | 20D |
| Min. Bend Radius (Static） | mm | 10D |
| Installation Temperature | ℃ | -20～+60 |
| Operating Temperature | ℃ | -40～+70 |
| Storage Temperature | ℃ | -40～+70 |
| Standard | IEC, EIA/TIA 455 |
| Fracture elongation of sheath | ≥350 |
| Tensile strength of sheath | 12.0Mpa |
Standards / Compliance
- Standard: IEC, EIA/TIA 455
