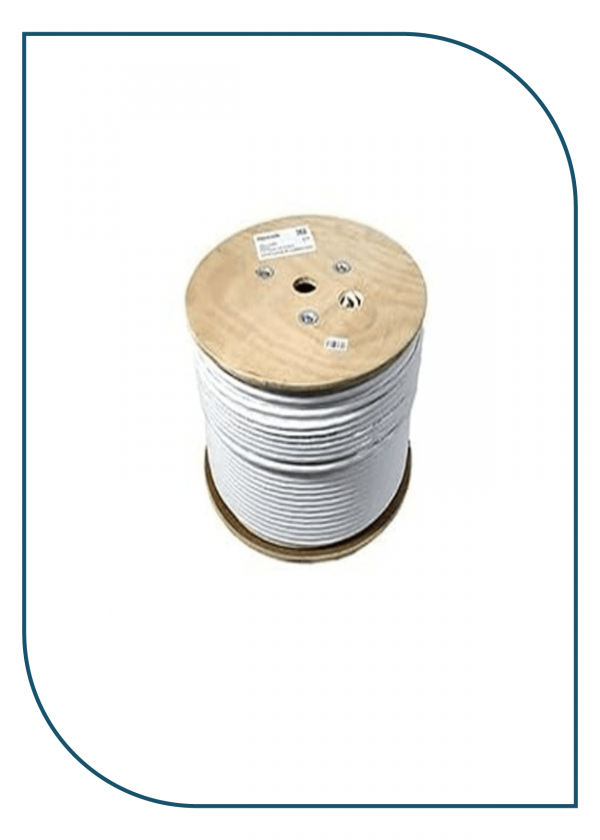

ProLink PL-C6-LSZH-W — CAT6 U/UTP Cable, 4 Pair 23 AWG, LSZH White, RIB
9.100,00 EGP
The ProLink PL-C6-LSZH-W is a high-performance CAT6 unshielded U/UTP network cable with 4 twisted pairs of 23 AWG solid copper, a Low Smoke Zero Halogen (LSZH) white jacket, and RIB design, providing reliable connectivity for 10/100/1000 Mbps Ethernet in office, data center, and enterprise networks.
Description
Category 6 U/UTP Cable, 23AWG, low smoke zero halogen, white jacket, 4 pair count, 305 m length Reel in a box
Applications
- Primary (Campus), Secondary (Riser), Tertiary (Horizontal) I EEE 802.3: 10Base-T; 100Base-T; 1000Base-T; IEEE 802.5 16 MB; ISDN; TPDDI; ATM I EEE 802.3af-2002: POE; IEEE 802.3at: POE+ O utdoor installations. Filled with compound to prevent water penetration. To ensure electrical properties even in continuous wet conditions.
Technical Specifications
| Specification | Value |
|---|---|
| Description | Category 6 U/UTP Cable, 23AWG, low smoke zero halogen, white jacket, 4 pair count, 305 m length Reel in a box |
| Cable Reference | PROLINK Positioning CAT.6 U/UTP |
| Cable construction | Conductor Solid copper wire AWG23 (Ø 0.58mm). |
| Insulation Polyethylene ≤ Ø 1.1 mm. | |
| Cable lay up 4 pairs to the core, non-metallic cross separator (spline). | |
| Cable core lying Waterproof compound to prevent moisture migration and water protection. | |
| Sheath White, LSZH | |
| Category 6 U/UTP Cable, 23AWG, low smoke zero halogen, white jacket, 4 pair | |
| count, 305 m length Reel in a box | |
| Cable core lying Waterproof compound to prevent moisture migration and | |
| water protection. | |
| Application | Primary (Campus), Secondary (Riser), Tertiary (Horizontal) I EEE 802.3: 10Base-T; 100Base-T; 1000Base-T; IEEE 802.5 16 MB; ISDN; TPDDI; ATM I EEE 802.3af-2002: POE; IEEE 802.3at: POE+ O utdoor installations. Filled with compound to prevent water penetration. To ensure electrical properties even in continuous wet conditions. |
| Standards | ISO/IEC 11801.; EN 50288-6-1;IEC 61156-5 EN 50173-1, |
| Water penetration rating | IEC 60794-1-2F5 , method B |
| Fire rating | (PE outer sheath) IEC 60754-2; Smoke classic cation: No |
| Technical Data | Cable designation Industry U/UTP Cat.6 500MHz 4PxAWG23 Packaging Drum 305 m Outer diameter Nominal 7.2 mm Weight 20 kg / km Thermal load 1884 MJ / km Segregation class b |
| Primary (Campus), Secondary (Riser), Tertiary (Horizontal) | |
| I EEE 802.3: 10Base-T; 100Base-T; 1000Base-T; | |
| IEEE 802.5 16 MB; ISDN; TPDDI; ATM | |
| I EEE 802.3af-2002: POE; IEEE 802.3at: POE+ | |
| O utdoor installations. Filled with compound to prevent water penetration. | |
| To ensure electrical properties even in continuous wet conditions. | |
| Cable designation Industry U/UTP Cat.6 500MHz 4PxAWG23 | |
| Packaging Drum 305 m | |
| Outer diameter Nominal 7.2 mm | |
| Weight 20 kg / km | |
| Thermal load 1884 MJ / km | |
| Segregation class b | |
| Technical Data | |
| Mechanical Properties | Tensile force 100 N Bending radius ≥ 33 mm during operation (without load) ≥ 65 mm during installation (with load) Temperature range During operation -55°C…+ 60°C During installation -15°C…+ 50°C |
| Electrical Properties (at 20°C ± 5°C) | DC loop residence ≤ 17.6 Ω / 100 m Resistance unbalance ≤ 2 % Test voltage DC, 1 min, core/core 1000 V Insulation resistance 500 V ≥ 5000 MΩ * km Capacitance 48 pF / m nom. Capacitance unbalance ≤ 1500 pF / km Mean characteristic impedance 100 ± 5 Ω Nominal velocity of propagation Approx. 67 % Propagation delay At 1 MHz ≤ 535 ns / 100 m Delay skew ≤ 20 ns / 100 m Coupling attenuation ≥ 40 dB Balance TCL At 1 MHz ≤ 55 dB At 10 MHz ≤ 40 dB At 100 MHz ≤ 35 dB |
| F (MHZ) | Attenuation (Db/100 m) | NEXT (dB) | PS-NEXT (dB) | )ACR-F 1 (dB/100 m) | )PS-ACR -F 1 (dB/100 m) | Return loss (dB) |
| Max | Typ | Max | Typ | Max | Typ | Max | Typ | Max | Typ | Max | Typ |
| 4 | 3.8 | 3.8 | 66 | 71 | 63 | 66 | 58 | 59 | 55 | 56 | 23 | 26 |
| 10 | 6 | 5.6 | 60 | 65 | 57 | 60 | 50 | 50 | 47 | 48 | 25 | 28 |
| 20 | 8.5 | 8.5 | 56 | 60 | 53 | 56 | 44 | 45 | 41 | 42 | 25 | 28 |
| 62.5 | 15.5 | 15.1 | 48 | 56 | 45 | 48 | 34 | 35 | 31 | 32 | 21.5 | 25 |
| 100 | 19.9 | 19.1 | 45 | 50 | 42 | 45 | 30 | 31 | 27 | 28 | 20.1 | 23 |
| 250 | 33 | 32 | 39 | 44 | 36 | 39 | 22 | 23 | 19 | 20 | 17.3 | 20 |
| 450 | – | 44.8 | – | 40 | – | 35 | – | 15 | – | 17 | – | 20 |
| Attenuation | |
| (Db/100 m) | |
| NEXT | |
| (dB) | |
| PS-NEXT | |
| (dB) | |
| )ACR-F 1 | |
| (dB/100 m) | |
| )PS-ACR -F 1 | |
| (dB/100 m) | |
| Return loss | |
| (dB) |
Standards / Compliance
- Standards: ISO/IEC 11801.; EN 50288-6-1;IEC 61156-5 EN 50173-1,
