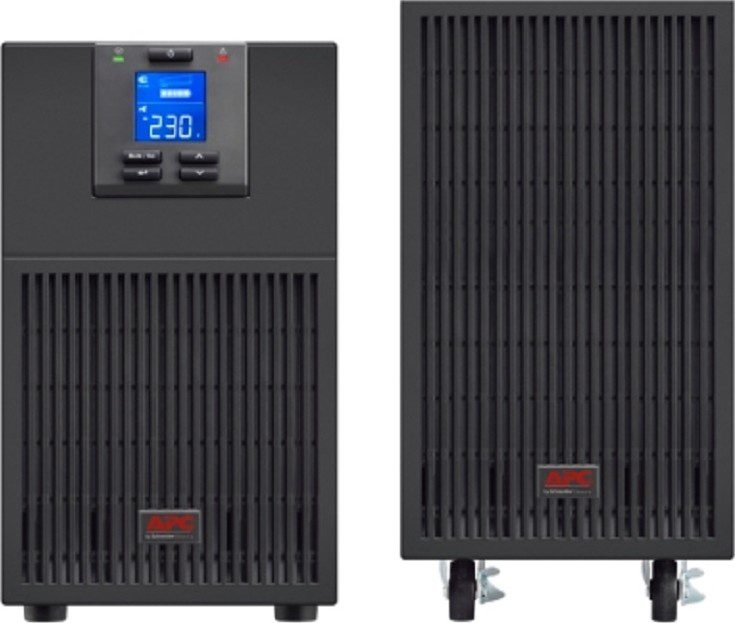

SRV6KIL APC Easy UPS On-Line SRV 6000VA 230V with Extended Runtime Battery Pack
SRV6KIL
APC Easy UPS On-Line, 6kVA/6kW, Tower, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime
-
SRV6KIL Overview Presentation High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.Lead time Usually in StockMain rated power in W 6000Â Wrated power in VA 6000Â VAoutput connector type Hard wire 3-wire (H N + E) 1Main Output Voltage 230 VOther Output Voltage 220 V
240 V
General Number of power module filled slots 0Number of power module free slots 0redundant Noprovided equipment Basic UPS signalling RS-232 cable
CD with software
1 x DC cable
User manual
USB cable
Physical mounting mode Not rack-mountableheight 36.8Â cmwidth 38Â cmdepth 48.5Â cmnet weight 73Â kgcolour BlackInput Main Input Voltage 230 VOther Input Voltage 220 V
240 V
input voltage limits 110…300 V half load
176…300 V full load
number of input connectors 1 hard wire 3-wire (1P + N + E)network frequency 40…70 Hz auto sensingOutput Maximum configurable power in VA 6000Â VAMaximum configurable power in W 6000Â Woutput frequency 50/60 Hz +/- 3 Hz sync to mainsharmonic distortion 1 %UPS type Double conversion onlineWave type Sine waveefficiency 94Â % (full load)additional information Configurable for 220 : 230 or 240 nominal output voltagebypass type Internal bypass (automatic and manual)crest factor 3 : 1Conformance product certifications CE
EAC
TISI
standards EN/IEC 62040-1
EN/IEC 62040-2
Environmental acoustic level 55 dBAheat dissipation 1172 Btu/hoperating altitude 0…3000 mambient air temperature for operation 0…40 °Cambient air temperature for storage -15…60 °Cstorage altitude 0…15000 mIP degree of protection IP20relative humidity 0…95 % non-condensingstorage Relative Humidity Non-condensing 0…95 %Batteries & Runtime battery type Lead-acid batterybattery voltage 240 Vnumber of battery filled slots 0number of battery free slots 0Battery recharge time 9 hbattery life 3…5 year(s)battery charger power 1170 W ratedbattery option SRV240BP-9A 1 3024 VAh
SRV240BP-9A 2 4536 VAh
SRV240BP-9A 3 6048 VAh
SRV240BP-9A 4 7560 VAh
SRV240BP-9A
Communications & Management alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarmcontrol panel Multifunction LCD status and control consoleEmergency power off Yesfree slots 1Surge Protection and Filtering Surge energy rate 600Â JPacking Units Package 1 Weight 79Â kgPackage 1 Height 46Â cmPackage 1 width 58Â cmPackage 1 Length 57Â cmOffer Sustainability REACh Regulation EU RoHS Directive Compliant
Mercury free YesRoHS exemption information Contractual warranty Warranty 2 years repair or replace
