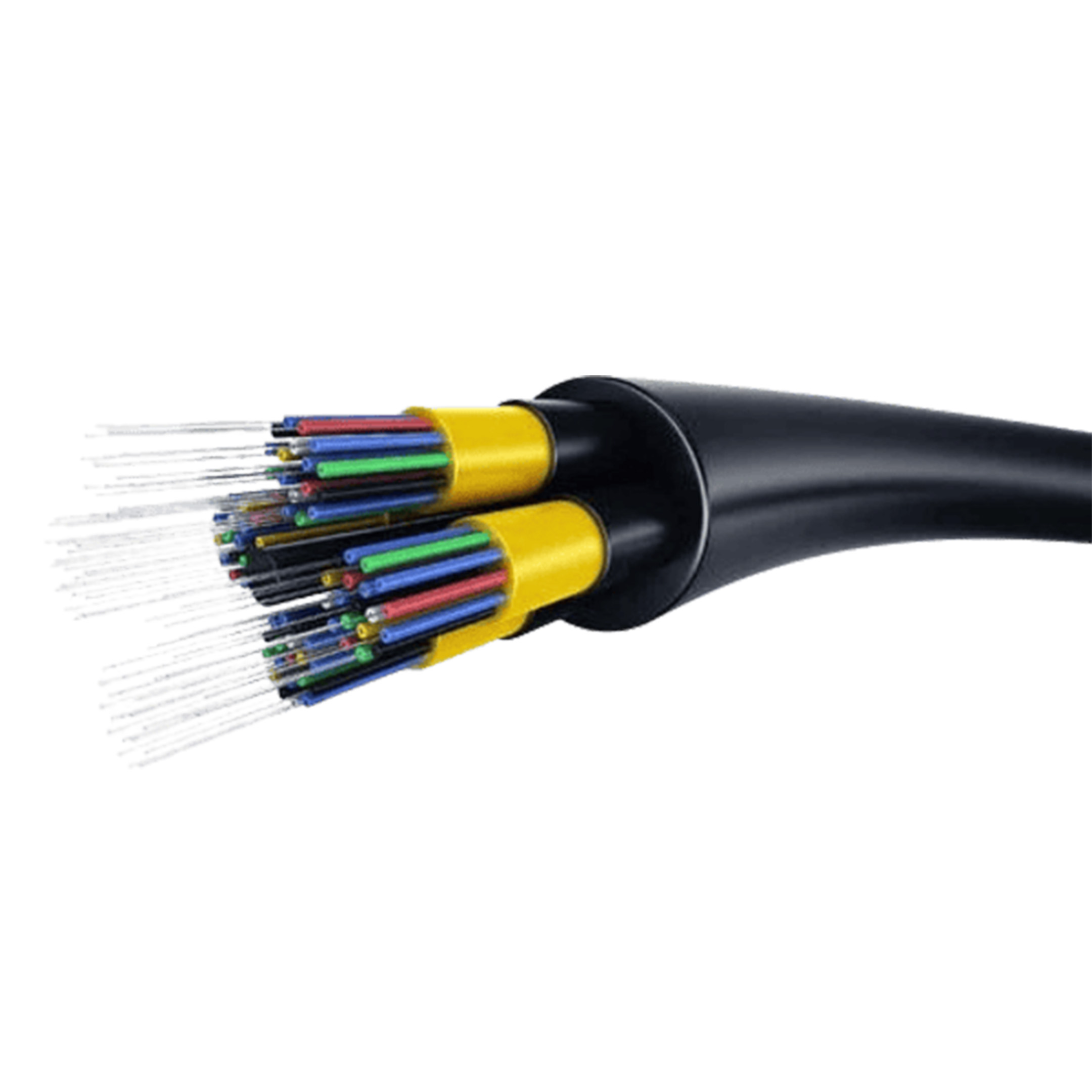

ProLink PL-FOC8-OM4 — Prolink Single Armor Central Loose Tube Fiber Cable 8 Core Multi Mode 50/125 OM4 OD:10MM
137,00 EGP
Prolink Single Armor Central Loose Tube Fiber Cable 8 Core Multi Mode 50/125 OM4 OD:10MM
Description
Description
ProLink Single ARMOR CENTRAL LOOSE TUBE CABLE 8-CORE MULTI MODE 50/125 PER METER
Technical Specifications
| Specification | Value |
|---|---|
| PROLINK MM Fiber System 50/125 O PL-FOC8-OM4 | M4 |
| ProLink Single ARMOR CENTRAL LOOSE TUBE CABLE 8-CORE MULTI MODE 50/125 PER METER | |
| Discerption | |
| OM4 OD:10MM | |
| Items | Unit | Specifications 50/125 |
| Core Diameter | μm | 50.0±2.5 |
| Cladding Diameter | μm | 124.8±1.0 |
| Cladding Non-Circularity | % | ≤1.0 |
| Core-Cladding Concentricity Error | μm | ≤1.5 |
| Coating Diameter | μm | 245±7 |
| Coating Non-Circularity | % | ≤6.0 |
| Cladding-Coating Concentricity Error | μm | ≤12.0 |
| 850nm | MHz·km | 600 |
| Bandwidth(min.) | |
| 1300nm | MHz·km | 1200 |
| 850nm | dB/km | ≤3.5 |
| Attenuation Coefficient | |
| 1300nm | dB/km | ≤1.5 |
| PROLINK MM Fiber System 50/125 OM4 PL-FOC8-OM4 | |
| Fiber Count | Specifications |
| Fiber Count | 8 |
| Dimension | 250μm±15μm |
| Blue, Orange, Green, Brown, | |
| Colored Coating Fiber | |
| Color | Gray, White, Red, Black, Yellow, |
| Purple, Pink, Aqua | |
| Dimension | 2.10mm±0.05mm |
| Loose Tube | Material | PBT |
| Color | Natural |
| Diameter | 1.0mm |
| Strength Member | |
| Material | Steel |
| Dimension | 9.0mm±0.3mm |
| Outer Jacket | Material | PE |
| Color | Black with purple |
| Items | Unit |
| Tension (Long Term） | 1201 N | 269.996 lbf |
| Tension (Short Term） | 2002 N | 450.068 lbf |
| Minimum Bend Radius, loaded | 231.1 mm | 9.098 in |
| Minimum Bend Radius, unloaded | 170.2 mm | 6.701 in |
| Installation Temperature | -5 °C to +50 °C (+23 °F to +122 °F) |
| Operating Temperature | -10 °C to +70 °C (+14 °F to +158 °F) |
| Storage Temperature | -10 °C to +70 °C (+14 °F to +158 °F) |
