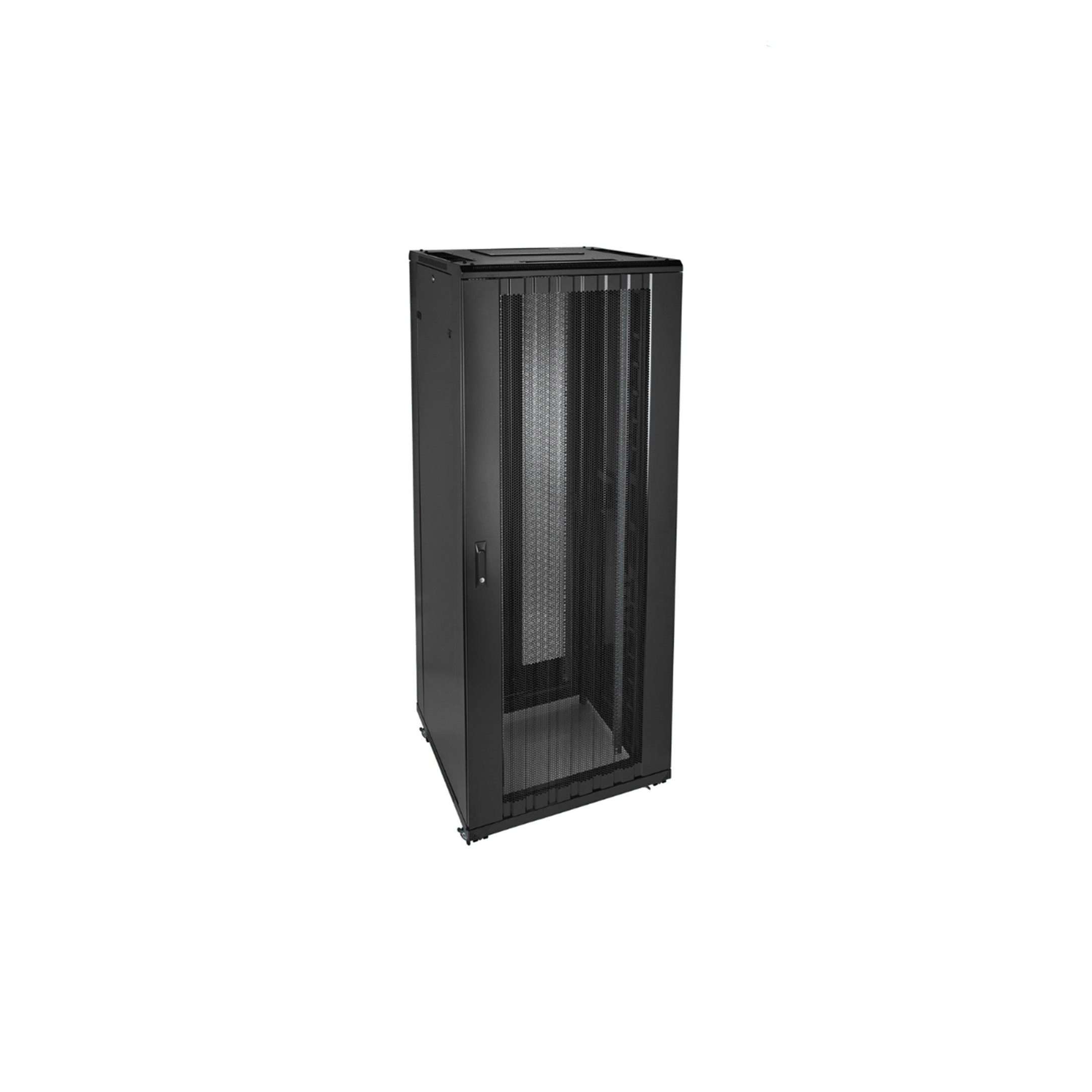

Prorack 42U 800×1200 Standing Server Rack with Vented Door – (PR-FV81242)
47.000,00 EGP
The Prorack PR-FV81242 is a 42U floor-standing server rack cabinet with 800 × 1200 mm dimensions, designed for server rooms, data centers, and structured cabling environments. It features a vented door, 4 cooling fans, 1 shelf, and 1 PDU with 8 outlets, making it a practical solution for housing servers, switches, patch panels, UPS systems, and other rack-mounted IT equipment.
Description
Standing server rack with Vented door, 4 fans, 1 shelf and 1 PDU 8 outlet.
Features
- Exquisite design with precise dimensions and craftsmanship
- Two side panels for each side can be separately open with locks, which are easy to operation and
- maintenance
- Two back sides with multifunctional cable routing panels
- High-class locks
- Casters and support feet can be installed simultaneously
- Optional pedestals for fixation, cable routing, ventilation, and rat proof
- Curved front screen door & back double screen door enable equipment to ventilate well
- Various optional accessories
- Pro-Rack logo is printed on the side panel
Specifications
| Specification | Value |
|---|---|
| Main Material | Cold-rolled steel |
| Load Capacity | Static load: 800KG |
| Surface Treatment | Degreasing, pickling, phosphating, laundering, powder coating |
Additional Technical Details
- Structure
- 1. Top cover
- 2. Bottom plate
- 3. Fans
- 4. Frame
- 5. Front door
- 6. Back door
- 7. Side panel
- 8. Horizontal bracket
- 9. Profile rails
- 10. Shelf
- 11. Cable manager
- 12. Junction box
- 13. Caster
- 14. Support foot
- Size
Additional Technical Details
- Installing
Additional Technical Details
- Technical parameters:
- Color:
- BLACK (RAL9005)
- NANES QUANTITY UNIT MATERIALS SURFACE
- TREATMENT REMARKS
- Top Covers 1 Pc 1.2mm cold-rolled steel powder coating
- Bottom plates 1 Pc 1.2mm cold-rolled steel powder coating
- Fans 4 Pc 1.2mm cold-rolled steel powder coating
- Frames 2 Pc 1.2mm cold-rolled steel powder coating
- Front doors 1 Pc 5mm tempered glasses
- 1.2mm cold-rolled quality steel powder coating door type E or B
- Back doors 1 Pc 1.2mm cold-rolled steel powder coating door type K
- Side panels 2 Pc 1.0mm cold-rolled steel powder coating
- Rails 4 Pc 2.0mm cold-rolled steel powder coating
- Shelves 1 Pc 1.2mm cold-rolled steel powder coating
- Casters 4 Pc
- M12 support feet 4
- Cage nuts 40
- Sockets with 8 outlet 1
- Beams 6 Pc 1.2mm cold-rolled steel powder coating
- Junction boxes 12 Pc 2.0mm cold-rolled steel
- TYPES PR-FG81242
- CAPACITY (U) 42U
- WIDTH 800
- DEPTH 1200
- HEIGHT 2055
- WHOLE PACKAGE
- WIDTH 820
- DEPTH 1220
- HIGHT 2065
- VOLUME (M3) 1.827
- FLAT PACKAGE
- PACKAGE A 1980*820*320
- PACKAGE B 1220*820*130
- PACKAGE C
- VOLUMES (M3) 0.629
- Front Door Vented
