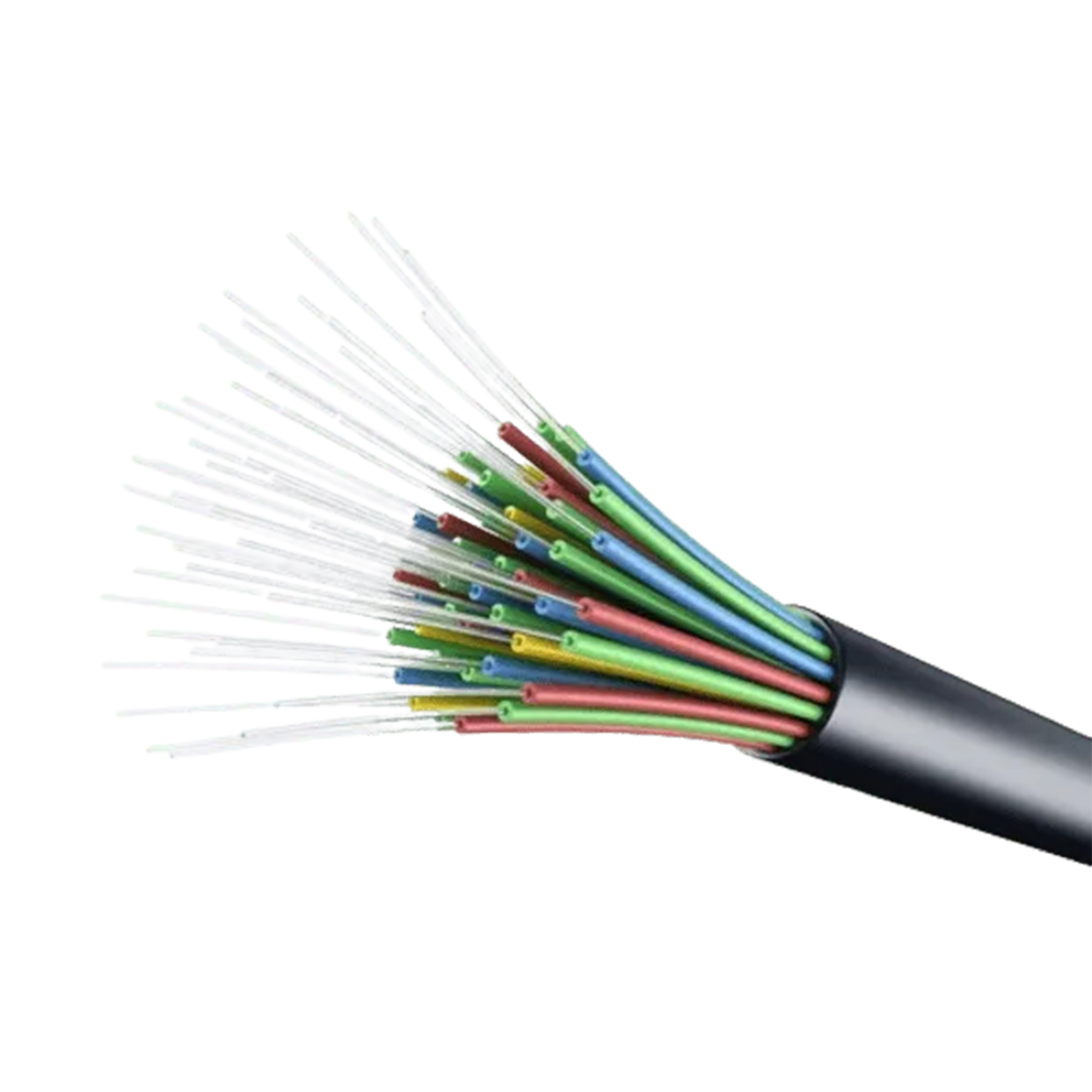

ProLink PL-FOC24-OM3 — Prolink Single Armor Central Loose Tube Fiber Cable 24 CORE Multi Mode 50/125 OM3 OD:10MM
146,00 EGP
Prolink Single Armor Central Loose Tube Fiber Cable 24 CORE Multi Mode 50/125 OM3 OD:10MM
Description
Description
ProLink Single ARMOR CENTRAL LOOSE TUBE CABLE 24-CORE MULTI MODE 50/125 PER METER
Technical Specifications
| Specification | Value |
|---|---|
| PROLINK MM Fiber System 50/125 O PL-FOC24-OM3 | M3 |
| ProLink Single ARMOR CENTRAL LOOSE TUBE CABLE 24-CORE MULTI MODE 50/125 PER METER | |
| Discerption | |
| OM3 OD:10MM | |
| Items | Unit | Specifications 50/125 |
| Core Diameter | μm | 50.0±2.5 |
| Cladding Diameter | μm | 124.8±1.0 |
| Core Non-Circularity | % | ≤5.0 |
| Cladding Non-Circularity | % | ≤1.0 |
| Core-Cladding Concentricity Error | μm | ≤1.0 |
| Coating Diameter | μm | 245±7 |
| Coating Non-Circularity | % | ≤6.0 |
| Cladding-Coating Concentricity Error | μm | ≤12.0 |
| 850nm | MHz·km | ≥700 |
| Bandwidth(min.) | |
| 1300nm | MHz·km | ≥500 |
| 850 | MHz·km | ≥950 |
| Eective Modal Bandwidth | |
| 1300 | MHz·km | ≥500 |
| 850nm | dB/km | ≤3.5 |
| Attenuation Coefficient | |
| 1300nm | dB/km | ≤1.5 |
| PROLINK MM Fiber System 50/125 OM3 PL-FOC24-OM3 | |
| Fiber Count | Specifications |
| Fiber Count | 24 |
| Dimension | 250μm±15μm |
| Blue, Orange, Green, Brown, | |
| Colored Coating Fiber | |
| Color | Gray, White, Red, Black, Yellow, |
| Purple, Pink, Aqua | |
| Dimension | 2.10mm±0.05mm |
| Loose Tube | Material | PBT |
| Color | Natural |
| Diameter | 1.0mm |
| Strength Member | |
| Material | Steel |
| Dimension | 9.0mm±0.3mm |
| Outer Jacket | Material | PE |
| Color | Black with Orange line |
| Items | Unit | Specifications |
| Environmental Space | Low Smoke Zero Halogen (LSZH) |
| Tension (Long Term） | N | 600 |
| Tension (Short Term） | N | 1500 |
| Crush (Long Term） | N/10cm | 300 |
| Crush (Short Term） | N/10cm | 1000 |
| Min. Bend Radius (Dynamic） | mm | 20D |
| Min. Bend Radius (Static） | mm | 10D |
| Installation Temperature | ℃ | -20～+60 |
| Operating Temperature | ℃ | -40～+70 |
